RFQ Checklist
- Controller stack and protocol profile requirements
- Axis count and synchronization constraints
- Voltage/current window and thermal duty expectations
- Manual/documentation package required by your team

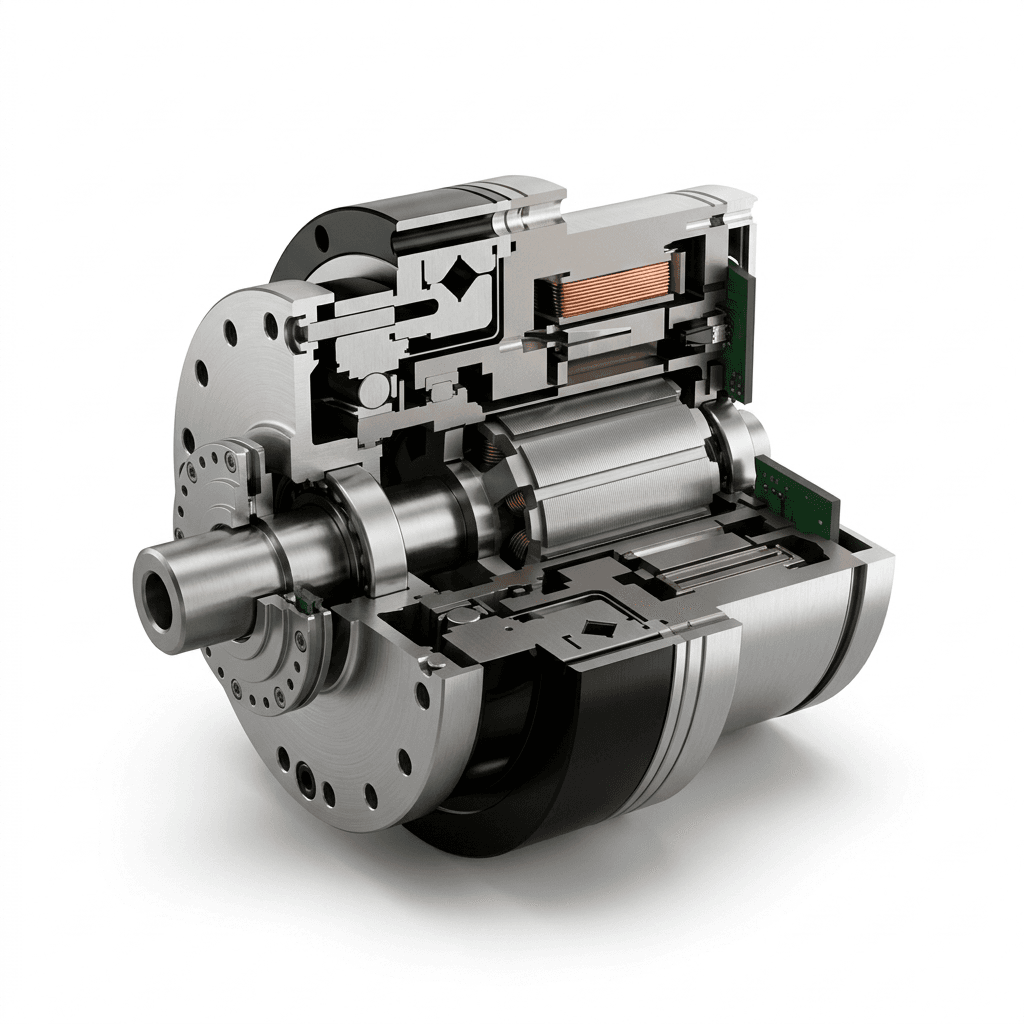

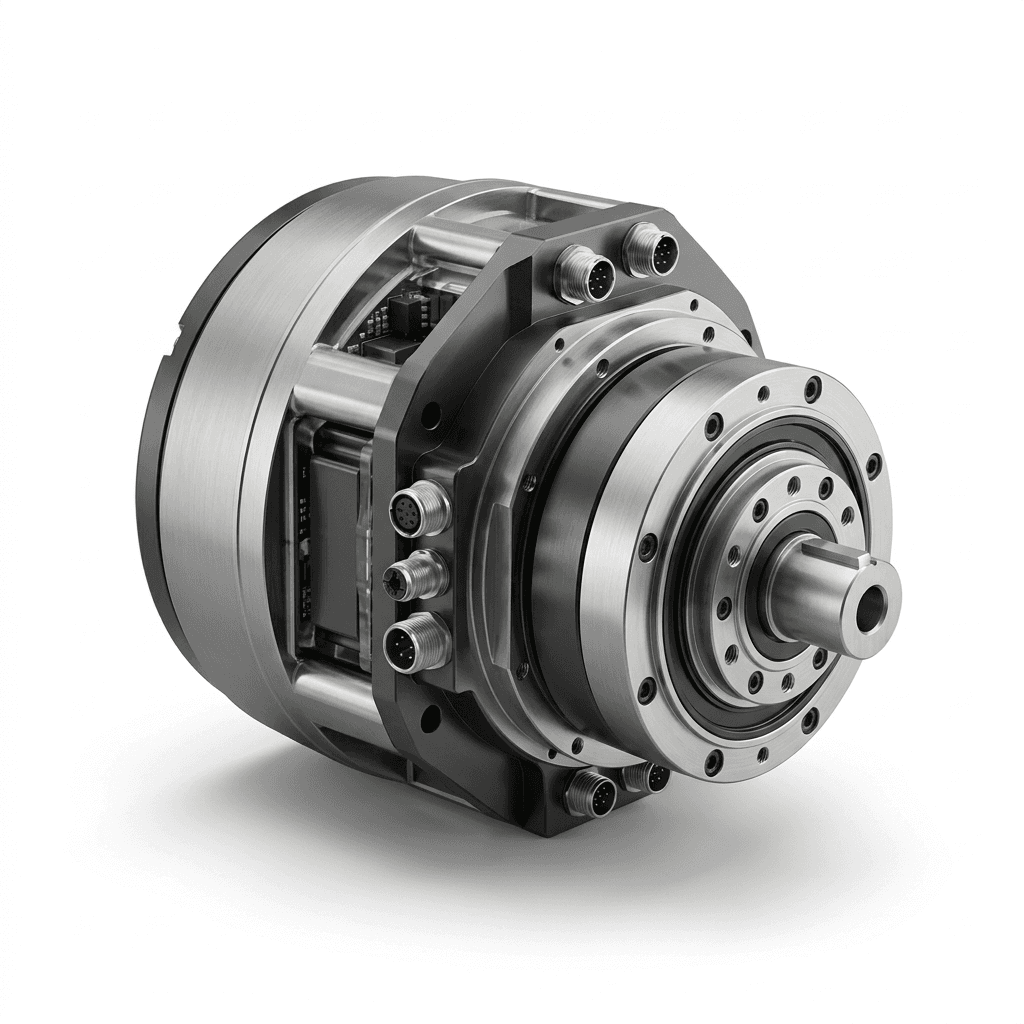

All-in-one rotary joint architecture integrating drive, encoder, and transmission for rapid commissioning.
Inquiry Email
Send target torque/speed, protocol, quantity, and delivery location.
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Bus protocol options | EtherCAT / CANopen DS402 | Determines integration speed and software compatibility. |
| Torque class coverage | 10-150+ Nm classes | Maps module family to payload and acceleration envelope. |
| Feedback architecture | Single or dual-encoder project options | Impacts control precision and diagnostics depth. |
CE, RoHS, and REACH documentation support is available by project scope. HS classification should be treated as reference guidance only and must be confirmed by importer/broker based on destination rules and final product configuration.
| Package | When to Request | Purpose |
|---|---|---|
| Datasheet | Model shortlist stage | Verify electrical and performance envelope assumptions. |
| STEP / IGES | Mechanical integration review | Validate envelope, mounting, and cable-routing compatibility. |
| Communication manual | Controller and commissioning planning | Align protocol behavior, PDO mapping expectations, and diagnostics workflow. |
Inquiry Email
Send target torque/speed, protocol, quantity, and delivery location.
Yes. DS402 communication manuals and engineering support are available during integration phases.
Yes. Request the required file pack during RFQ to align faster commissioning.
